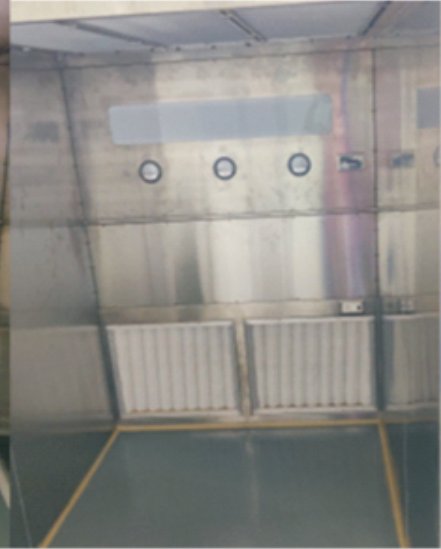

Reverse Laminar Air Flow Unit –Rlaf

Features

  • Design according to GMP-Guideline easy to clean and to disinfect
  • Material of Construction: SS 304 / SS 316
  • Front Anti-Static PVC Curtains
  • Miniplate HEPA filter H13 filter for supply air,99.997% Efficiency 0.3µm
  • EU4-Prefilters (90% down to 5 micron)
  • EU7-Internediate Filter (95% down to 3 micron)
  • Magnehelic Differential pressure gauge(If Required)DigitalMeasuring system for differential pressure.
  • DOP Port/Atmospheric Nozzles/ Upstream Port.

Electrical

  • Microprocessor Based Control System & LED Display Differential Pressure Indicator.
  • LED light & UV light along with Hour meter.
  • Feather Touch controller for Blower/Light/UV Display
  • 5/15 Amp Switch Socket for external equipment
  • Audio Visual Alarm for Blower Trip

Operating Condition

  • Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocity: 0.45± 0.05mps
  • Air Flows: Vertical – Re-circulatory
  • Noise Levels: Less than 67 dB
  • Vibration Levels: Minimum
  • Power Suppling: 230V AC Single Phase 50HZ
