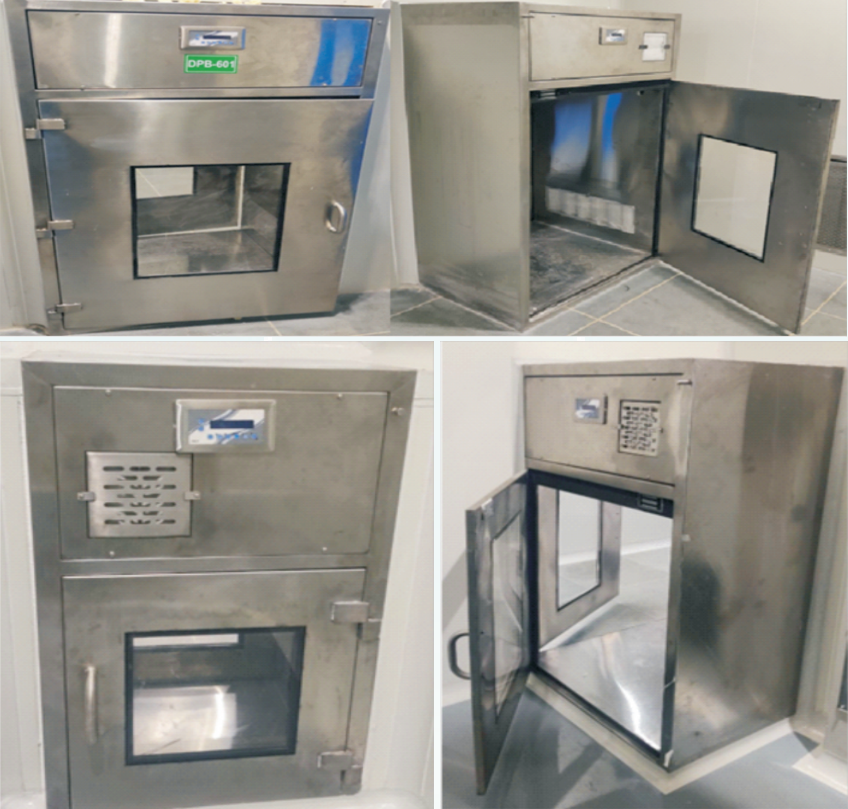

Dynemic Pass Box

Features

  • Design accordingto GMP-Guideline easy to clean and to disinfect
  • Material of Construction: SS 304 / SS 316
  • Flush Double walled Construction
  • Dynamic pass box with double walled glass, Acrylic, view panels in doors.
  • SS 304 Handles & SS hinges
  • Internal coving for easy cleaning
  • Re-Circulated Filtration System
  • HEPA filter H13 filter for supply air,99.997% Efficiency 0.3µm
  • EU-4 Grade Pre-Filter
  • Magnehelic Differential pressure gauge(If Required) DigitalMeasuring system fordifferential pressure.
  • DOP Port/Atmospheric Nozzles/Upstream Port.

Electrical

  • Microprocessor Based Control System & LED Display with Electro-Magnetic Interlocking System and Pressure Indicator.
  • Feather touch Door Release Switch on either side
  • Indicator on either side
  • LED light & UV light along with Hour meter.
  • Electromagnet for door interlocking.
  • Feather Touch controller for Blower/Light/UV Display
  • Auto velocity speed control as per high- and low
    -pressure setting

Operating Condition

  • Air cleanliness:ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocity: 0.45± 0.05mps
  • Air Flows:Horizontal
  • Noise Levels: Less than 67 dB
  • Vibration Levels:Minimum
  • Power Suppling: 230V AC Single Phase 50HZ
